3D Arena
Automated installed photogrammetry systems
Multi-camera 3D inspection with unprecedented measurement freedom
Would you like to know more?
A constellation of high-definition cameras supported by a high-stability carbon frame captures a constant live feed of a signalised measurement object. Every measurement is automatically transformed into the object coordinate system, and the 3D Arena always knows where the object as well as work tools and testing devices are located within the coordinate space.
See the 3D Arena in action
Watch videos of the 3D Arena in action to see how it is currently being used to overcome challenges like yours.
Multiple part positioning with dynamic photogrammetry
Can I measure a typical manufacturing fixture for setup?
Fully autonomous inspection and production with AGV mobility and automated measurement stations
Features and benefits
High resolution
High resolution 8-megapixel cameras for highest accuracy across the entire measurement volume
Robust construction
Highly stable carbon frame with integrated vibration damper for mounting the cameras in vertical or horizontal setup
Limitless measurement
Supplies any number of measuring points and object information at the same time (3D and 6DoF)
Flexible scale
Customisable measuring volume due to flexible number of cameras
Tracking
Multiple simultaneous point and adaptor measurements time allows monitoring of complex assembly processes
Flexible setup
Vertical or horizontal setup allows for unobstructed views and a flexible use of space
Probing
Compatible with the wireless handheld MI.Probe for measuring of areas out of sight of the cameras
Uninterrupted measurement
Targets allow repeated inspections without interrupting processes for realignments
Measurement accessories
Solution-based adaptors for custom-made applications help to speed up adjustment and inspection tasks
Unstable measurement
Applicable for measurements under challenging and harsh environmental conditions directly within production areas
Buy measurement targets online
Identify your spare parts with confidence and benefit from fast UPS delivery.
-

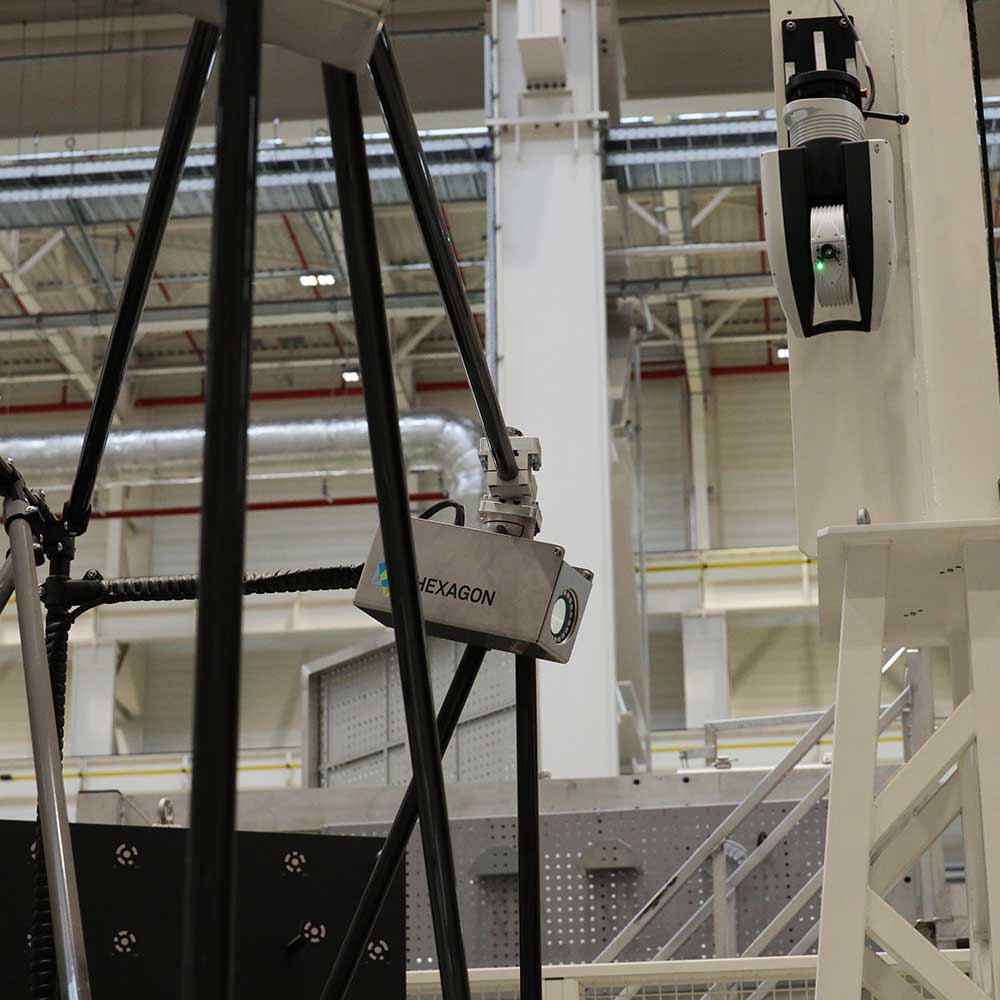

Photogrammetry meets laser trackerThe highly customisable nature of a 3D Arena allows it to be used in conjunction with laser trackers within large integrated measurement and alignment systems, such as might be used in wind energy construction and assembly.
This sort of metrology-assisted assembly system has the potential to deliver large productivity gains when used in combination with a specially designed automation and control system.- Fixed wide-angle laser tracker targets can be used to introduce a coordinate system within which the photogrammetry results can be referenced
- Calibration is automatable using a custom robot and turntable based system
- Flexibility of the 3D Arena concept means there is no limit to part size
- Live results provided by the 3D Arena dynamic referencing capability is ideal for assembly alignment task
Learn more
-
Customer stories
Aerospace / General Manufacturing
Mobile components make inspection and production fully autonomous
UniFix, Fraunhofer IFAM –Stade, Germany -
