Inspire: An all-in-one solution
Contact us

Inspire offers the tools to plan, measure, analyse, and report a wide range of applications, which creates a single and comprehensive software solution for many portable metrology projects. Built with user experience and workflow in mind, Inspire is a single package that supports a large number of portable metrology hardware for both scanning and probing applications. Advanced analysis operations and a dedicated reporting suite are also included and fully integrated from the initial download.
CAD support
Inspire supports the import of all native CAD formats including CATIA, Creo, SolidWorks, NX, standard formats, and more. Updates and new releases of CAD formats are all included with the latest versions of Inspire.
Measurement
Connecting to an instrument has never been easier. Inspire can automatically add and connect to an instrument using predefined parameters without any interaction from the user after initial configuration. Simply set a default instrument and choose whether or not you would like to attempt a connection to the instrument when the project is opened.
Inspire is an all-inclusive package containing all the capabilities needed to collect both scanning and probing data. Switching between acquisition modes is simple too, with just a simple gesture or switch on the instrument to change modes.
All point cloud measurements have an associated clipping plane for the user to measure if desired. Newly collected probed measurements use Inspire’s SmartFeatures to identify and create the correct geometry.
Analysis

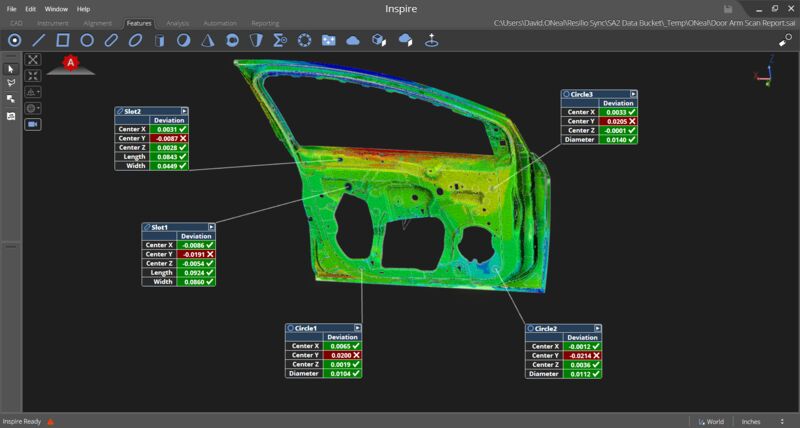

All features being measured will display in the graphical Heads-Up Display (HUD) with basic form checks and fit statistics for real-time feedback. By default, and if applicable, a feature’s form check and locational information can be found in the feature’s criteria panel. Inspire will adjust the displayed criteria based on the geometry type and allows for full control to add various GD&T checks and other locational information specific to a feature.
Build cross-sections for 2D analysis of cloud and CAD data. Create and refine a polygonised mesh with unique smoothing techniques. Colorised meshes provide a detailed visual of deviations from a design CAD model or existing mesh.
Reporting
Inspire is equipped with a a dedicated reporting suite built specifically to support Inspire’s unique feature-based measurements. This allows features and analyses to be created before measurements are added to a report. The report will automatically update as measurements are added to features. Add editable screen views to the report, templates, and with additional customisation features easily.
-
Supported instruments
With a single interface, Inspire supports a wide range of portable probing and scanning devices. New devices are regularly added to the list.
Hexagon Manufacturing Intelligence
Portable CMM Arms
Absolute Arm 6-Axis
Absolute Arm 7-Axis
Absolute Arm Compact
ROMER Absolute Arm
ROMER Absolute Arm SI/SE
Laser Trackers
Leica Absolute Tracker AT901
Leica Absolute Tracker AT930/AT960
Leica Absolute Tracker AT-40X
Leica Absolute Tracker ATS600
Scanners
AICON StereoScan neo
AICON SmartScan
AICON PrimeScan3D Laser Scanners
RS5 Laser Scanner
RS6 Laser Scanner
RS-SQUARED Area Scanner
Total Stations
Leica TDRA6000 Laser Station
Leica Nova MS60 MultiStation
Faro Technologies
Portable CMM Arms
Quantum S/M Arm 7dof
Quantum S/M Arm 6dof
Edge Arm
Fusion Arm
Platinum Arm 8ft 7dof
Platinum Arm 6ft 7dof
Quantum Arm
Laser Trackers
Vantage Laser Trackers
Ion Laser Tracker
X/Xi Series Laser Tracker
Automated Precision Incorporated (API)Laser Trackers
OTII Laser Tracker
Radian Laser Tracker
Tracker3 Laser Tracker
