Absolute Scanner AS1

The market-leading 3D laser scanner for arm and tracker, manual and automated

Would you like to know more?

The Absolute Scanner AS1 is the flagship 3D scanning sensor for Absolute Tracker AT960 and Absolute Arm 7-Axis systems. Using cutting-edge blue-laser technology and advanced programming, it combines ‘always-on’ maximum performance with simple usability to deliver high-productivity non-contact 3D measurement. Thanks to a ground-breaking modular cross-platform technology concept, the same scanner unit can be used for both portable measuring arm and laser tracker measurement, without even the need for realignment when switching.

Powered by our innovative SHINE – Systematic High-Intelligence Noise Elimination – technology, the AS1 has no hidden settings that limit speed and scan-line width in order to deliver peak accuracy. The AS1 delivers full performance at all times – maximum frame rate at maximum laser width for maximum productivity. Now high-speed 3D scanning comes without performance degradation on any surface, whatever the finish or material. With an extra-wide horizontally-oriented laser scan line and fully-automatic exposure settings, 3D digitisation is faster, easier and more accurate with the Absolute Scanner AS1.

Absolute Scanner AS1 Unmounting the AS1 is as simple as flicking a switch, allowing it to be mounted to another referencing device, or in the case of the Absolute Arm, allowing for easier and safer access to touch probing functionality in hard-to-reach areas. It can then be remounted with no need for recalibration – thanks to its completely repeatable mounting, you just clip it back in place and continue 3D scanning immediately.

For Absolute Tracker measurement, the Absolute Scanner must be paired with an Absolute Positioner AP21 unit, which provides the 6DoF referencing needed for large-scale tracker measurement. The AP21 is so well-tuned, it allows the AS1 to deliver full accuracy to within just 50 microns across the full measurement range, up to 30 metres from the tracker.

The AS1 is also automation-ready when built into a laser tracker automation system. Its high-speed data collection capability is ideal for keeping up with the speed of modern robot systems, allowing them to be fully exploited for increased manufacturing productivity, while the AS1’s large standoff distance makes automation a safer option with less risk of collisions.

The Absolute Scanner AS1 is the pinnacle of 3D scanner technology for portable measuring arms and laser trackers. It constitutes the ultimate all-round portable measurement solution for components of any size. The future of 3D scanning is AS1.

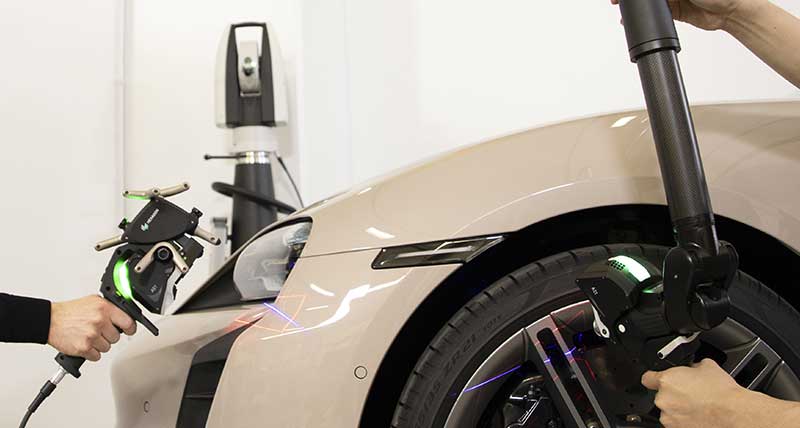

An image of Hexagons AS1 3D laser scanner. The image on the left has the scanner connected to its tracker cradle. The image on the right has the scanner connected to a portable measuring arm.

Features and benefits

Large-scale accuracy
Measurement accuracy to within just 50 microns across the entire 60-metre diameter measurement volume when used with an Absolute Tracker.

Smaller-scale precision
Complete Scanning System Accuracy to within just 39 microns with Absolute Arm measurement.

Low noise, big data
Up to 1.2 million points per second of high-quality measurement data, even when scanning shiny materials that often require spray with other scanners.

High-speed measurement
Digitise large surfaces quickly with data collected at 300 lines per second with no need to reduce laser line width or point spacing.

Scan line
The extra-wide mid-range scan line width of 150 millimetres makes digitisation of large parts and surfaces fundamentally faster by covering more surface area with each scan pass.

SHINE performance
The advanced algorithms of our SHINE technology allow you to digitise almost any surface type with the default exposure settings, from glossy black plastic automotive body parts to moulded carbon-fibre components, making high-quality measurement easier than ever with no high-level training required and operator variability eliminated.

Ease-of-use
Switching between measurement profiles and executing of macros and other software functions is fast and easy direct from the scanner with the AP21’s programmable Quick Access buttons and the Absolute Arm’s OLED touch screen wrist display.

Light movement
Weighing in at just 400-grams, the AS1 is light and easy to move, minimising the user fatigue that is one of the most common causes of inaccurate and unreliable measurement results.

Completely portable
Lightweight design of the scanner carries through to the controller, which can be mounted directly on the tracker stand.

Visual guidance
A laser-projected range finder helps users measure more accurately and efficiently by helping ensure the scanner is positioned correctly relative to the part being measured.

Automation ready
A direct digital input/output function built into the scanner controller allows robot movement and scanning tasks to be managed without a dedicated automation interface for laser tracker automation setups.

Modular marvel
The modular concept of the AS1 allows for quick and easy serviceability, as well as device sharing between measurement teams and locations.

Cross-platform compatibility
Fit the AS1 to a handheld Absolute Positioner AP21 unit to measure over large volumes with an Absolute Tracker, or switch to an Absolute Arm 7-Axis for smaller-scale measurement, with no realignment required when switching.

ISO Certification
The full scanning system accuracy of the AS1 and Absolute Arm 7-Axis system is supplied certified according to ISO 10360-8 Annex D, while an AS1 with AP21 unit is specified in line with ISO 10360-10.
