m&h RC-R-100 Radio receiver
The multifunctional radio receiver for the complete machine tool multi-sensor portfolio
Ready to get started?
Talk to an expert and discover what Hexagon can do for your organization.
The radio receiver m&h RC-R-100 communicates with radio-wave touch probes in the 2.4 GHz range and can be easily mounted in the machine room.
The receiver supports bidirectional communication for up to 8 probes on the same machine. It can communicate with all kinds of Hexagon probing systems and sensors, including tactile probes, temperature probing systems, ultrasonic probes and laser scanners. Because of this, the m&h RC-R-100 is the centre piece of Hexagon’s machine tool multi-sensor technology, enabling the use of more than one sensing technology on the same machine tool.
The receiver is designed for reliable transmission and ease of use, with innovative pairing options making it simple to install new or additional probes and sensors. Clearly visible LEDs on the front of the receiver help users to quickly recognise the current transmission quality and status of the probes being used.
The receiver supports bidirectional communication for up to 8 probes on the same machine. It can communicate with all kinds of Hexagon probing systems and sensors, including tactile probes, temperature probing systems, ultrasonic probes and laser scanners. Because of this, the m&h RC-R-100 is the centre piece of Hexagon’s machine tool multi-sensor technology, enabling the use of more than one sensing technology on the same machine tool.
The receiver is designed for reliable transmission and ease of use, with innovative pairing options making it simple to install new or additional probes and sensors. Clearly visible LEDs on the front of the receiver help users to quickly recognise the current transmission quality and status of the probes being used.
Multisensor machine tools
-
Features & benefitsMDR (Multi Data Rate) technology
MDR technology makes it possible to transmit high data rates and large data sets in the shortest possible time. The spread spectrum transmission and a multiple transfer of the records ensure transmission reliability and a fast and trouble-free measurement process.
AFS (Automatic frequency select) technology
With AFS technology, the frequency ranges radio band are continually scanned to ensure the automatic selection of partial frequencies that are free of interfering signals. This not only ensures the system's own transmission will be fast and trouble-free, but also prevents interference form WLAN systems or other radio sources.
-
Technical data
Transmission frequency 2400-2483.5 MHz (2.4 GHz)5.18-5.24 GHz (WLAN 5GHz) (20 MHz chanels 36, 40, 44, 48) Transmission/reception range Up to 15 m Power supply 12 -30VDC, max. 400mA*
(*depending on the output load and the operating state)Weight RC-R-100-R= 1210g (with cable) RC-R-100-R-PT = 1570g (with cable and protection tube)
Temperature range Operation: 10° -50°C, Storage: 5° -70°C Material Stainless steel Sealing IP68: EN60529, IEC529/DIN40050 Installation (TD) 4x Cap head screws M4 Connecting cable RC-R-100-R=0,5m with plug
RC-R-100-R-PT =2m with plug -
Downloads
-
Buy machine tool accessories online
Buy Machine Tool accessories online
Identify your spare parts with confidence and benefit from fast UPS delivery
HxGN LIVE Global
Learn how our technologies can digitally transform facilities, assets and workflows to drive productivity.
m&h LS-R-4.8 Radio laser scanner for machine tools
The m&h LS-R-4.8 is a wireless laser scanner for machine tools. Data is transmitted via radio to the machine control and measuring software, which is why the sensor can be changed in and out of the tool changer without any manual steps.
RWP20.50-G-UTP Ultrasonic Measurement Solution

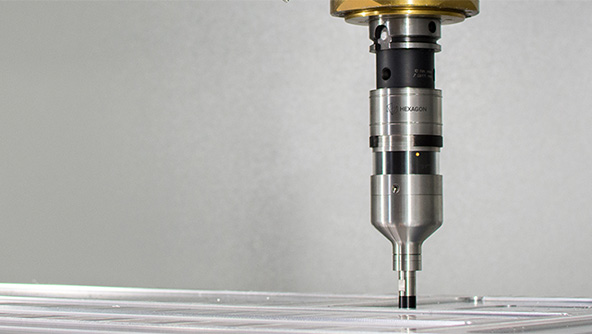

The RWP20.50-G-UTP ultrasonic touch probe makes it simple to automatically measure the thickness of the walls of larger parts directly on the machine tool, resulting in significantly faster inspections and enhanced data capture.
