Hexagon's Ti5 display
5” screen display that enables the use of precision agriculture features in field operations
Ready to learn more?
Talk to an expert and discover what Hexagon can do for your organization.
Manufacturers of agricultural machinery and implements can already rely on embedded technology that improves the execution of activities in the field of rural producers. Entry-level model that combines precision and reliability in field operations.

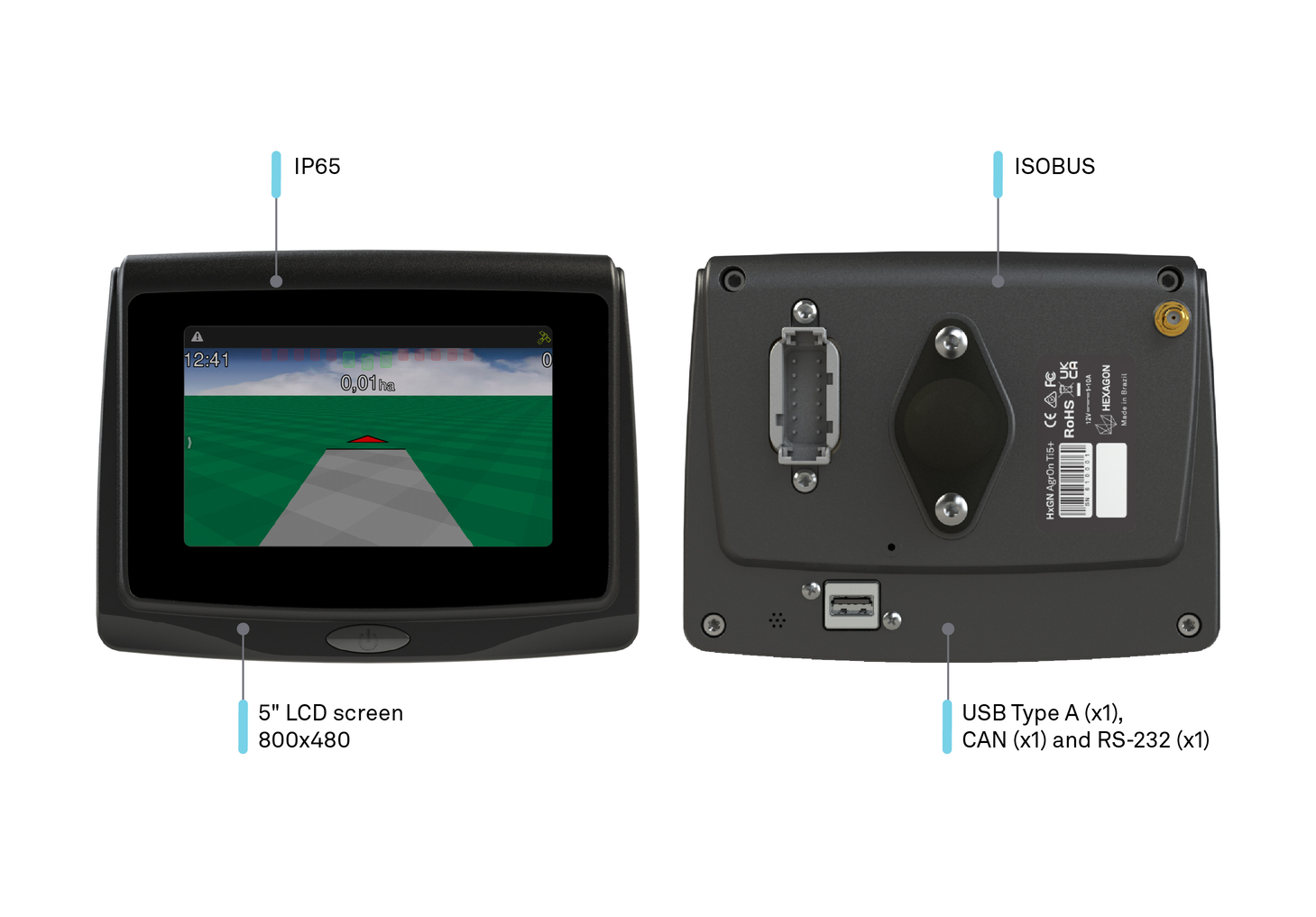

This model of the agricultural display is available in a 5” screen with IP65, its intuitive interface supports day-to-day use, while the robust construction ensures durability. Compatible with a wide range of machines, featuring ISOBUS communication and a durable aluminium housing, it automates field activities to deliver greater operational efficiency and quality.
Understand the differences between our displays below, and discover the best option for your operation:
| Characteristics | Ti5  |
Ti10  |
| Quantity of products per equipment | Ti5 operates with a set of solutions that vary according to the type of implement and machine. Contact us to find out more. | Operates with high-precision positioning and can work with all Hexagon’s implement control products and HxGN AgrOn Machine Monitoring simultaneously with the auto steering kit. |
| Screen configuration | 5” LCD 16M colours, 750 cd/m2 brightness and 1200:1 contrast, 800×480 |
10” LCD 16M colors, 1000 cd/m2 brightness, 800:1 contrast, 1280x800 (HD) |
| Protection index | IP65 | IP65 IP66, IP67 |
| Processor | Quad core 1.6 GHz ARM Cortex-A53 |
Quad Core 1.2 GHz 4x ARM Cortex-A35 |
| Communication Wireless |
None | Bluetooth 5.0 Wi-Fi 4G |
| ISOBUS | Yes | Yes |
| Interfaces | USB Type A (x1), CAN (x1) and RS-232 (x1) | USB Type A (x2), CAN (x3) and RS-232 (x2) |
| Certifications | CE, RCM, RoHS, WEEE | ANATEL, CE, RED, RCM, RoHS, WEEE |
