Fertilisation Control

Automated control system for fertiliser and limestone applications.

Ready to get started?

Talk to an expert and discover what Hexagon can do for your organization.

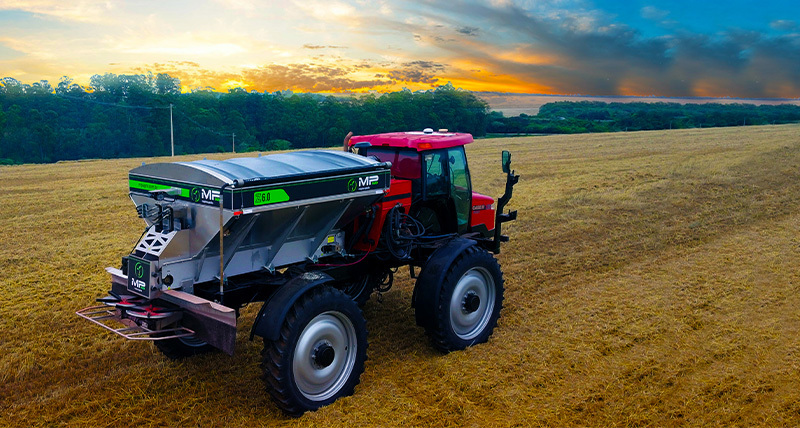

Hexagon’s automatic fertiliser system intelligently regulates and automates limestone and fertiliser application, avoiding waste and failures while providing real-time coverage. The product has variable rate application system for two types of implement, conveyor and based on an electric linear free flow hopper.

What are the benefits of Hexagon’s automatic fertiliser systems and fertilisation control?
Using precision agriculture to automatically control the application of fertilisers and agricultural lime it is possible to equalise the soil nutrients. Studies show that with the variable rate controller it is possible to reduce inputs used in the operation by up to 25%. AgrOn Fertilisation Control also corrects fertilisation deviations by up to 15%, allowing fewer application failures.

 Learn more about AgrOn Fertilisation Control:
  • Regulates and automates variable rate application
  • Has an application system for sprayers, fertilisers and planters
  • Shows coverage of the application area in real time, during operation
  • Has the Plate Rotation Control functionality
  • Simple calibration and operation
  • High precision controller
  • Records detailed operating information
  • Monitors and controls the application of up to 3 solid inputs
  • Imports maps (.shp) pre-defined in the office
  • Integrated with Ti5, Ti7 or Ti10 display
  • Includes the HxGN AgrOn Fertilisation Control | Remote Access add-on module


Watch the vídeo and learn more about this product:

  • HXGN AGRON FERTILISATION | REMOTE ACCESS

    Learn more about the add-on module:

    System for remote access to displays for technical assistance and calibrations.

    Through an internet connection, it is possible for technical staff to view the display helping solve problems that arise in real-time. It is an exclusive and available service for all products that are enabled in the displays.

    Characteristics:

    • Remote monitoring of the machine
    • Ensures fast, efficient and cost-effective service
    • Accepts differents Internet connections: cable, Wi-Fi, 4G, 3G and even 2G
    • Allows technical team to view the display screen and control if needed

    Benefits:

    • Fast service
    • Reduces cost service
  • DISPLAYS

    The displays allow users to use Hexagon Precision Agriculture solutions. They are compatible with several machines on the market and meet the needs of each customer – with the possibility of including only one or even all products in a single display.


    Benefits:

    • Automating machine operations
    • Real-time monitoring
    • Optimising the agricultural and forestry operations
    • Using resources wisely

    Farming accuracy:

    • GNSS L1 10Hz - GPS with EGNOS/WAAS 2,0 m (absolute)
    • GNSS L1 20Hz - GPS with EGNOS/WAAS 15-20cm (pass to pass, 15min)
    • GNSS L1/L2 20Hz - GPS/Glonass 10cm (pass to pass, 15min)
    • GNSSL1/L2/Lband 20Hz - GPS/Glonass/TerraStar 2,5cm (absolute)
    • GNSSL1/L2/Lband 20Hz - GPS/Glonass/RTK 2 cm (absolute)




    Characteristics Ti5Grafico Ti5
    Ti7Grafico Ti7
    Ti10Grafico Ti10
    Screen size 5" LCD
    7" LCD
    10.1" LCD
    Processor Single core 800 MHz 1x ARM Cortex-A9
    Single core 800 MHz 1x ARM Cortex-A9 Quad Core 1.2 GHz 4x ARM Cortex-A35
    Storage capacity
    RAM: 1 GB DDR3
    FLASH: 4 GB eMMC
    RAM: 1 GB DDR3
    FLASH: 4 GB eMMC
    RAM: 2 GB DDR3
    FLASH: 32 GB eMMC
    Screen configuration
    16M colours, 600 cd/m2 brightness and 600:1 contrast
    265K colours, 1000 cd/m2 brightness and 400:1 contrast
    16Mcolors, 1000 cd/m2 brightness, 800:1 contrast
    Resolution 800×480
    800×480
    1280x800 (HD)
    Display size
    162 mm (W) × 125 mm (H) × 45 mm (L)
    208 mm (W) × 159 mm (H) × 57 mm (L)
    177 mm (W) x 250 mm (H) x 47 mm (L)
    Sturdy aluminium case
    Yes
    Yes
    Yes
    High contrast and configurable lighting for different visibility conditions
    Yes
    Yes
    Automatic
    Camera
    No No
    5MP Front Camera*
    Audio system with built-in speaker and microphone
    No
    No
    2W speaker Front microphone for audible alerts
    Multi-language support
    Yes Yes
    Yes
    Wi-Fi 2.4GHz*
    No Optional Yes
    Record of detailed information of operations and export/transmission of files
    Yes Yes Yes
    Digital Radio 900MHz or 433Mhz*
    No Optional Optional
    4G+ cell phone with 28 band support (700MHz)*
    No Optional Optional
    Bluetooth
    No Optional Bluetooth 5.0
    User Entry
    Touch screen and Power button Touch screen and Power button Touch screen and Power button
    Battery
    - - Li-Ion 4.900 mAh*
    ISOBUS
    No Yes Yes
    Quantity of products per equipment**
    Up to 3 No limit No limit
    External map reading in shape (.shp) format, prepared in the office
    Yes Yes Yes
    Protection Index
    IP65 IP64 IP66, IP67
    Power supply
    12Vdc 12Vdc 12Vdc
    Operating temperature
    -20°C to 60°C -20°C to 60°C -20°C to 70°C
    Storage temperature
    -30°C to 80°C -30°C to 80°C -30°C to 80°C
    Interfaces
    USB (x1), CAN (x1) and RS-232 (x1) USB (x1), CAN (x2) and RS-232 (x2) USB (x2), CAN (x3) and RS-232 (x2)
    Certifications
    CE, RCM, RoHS, WEEE ANATEL, CE, RED, RCM, RoHS, WEEE ANATEL, CE, RED, RCM, RoHS, WEEE

    * Check the communication available on each model

    ** Ti5 compatible with AgrOn Electric Auto Steering, AgrOn Guidance and a product to choose from

Digital Flyer

Download the digital flyer and learn more about AgrOn Fertilisation Control.

Interested in Our Solutions?

Fill out this form to request a demo and learn how you can benefit from the digitalisation of agriculture.

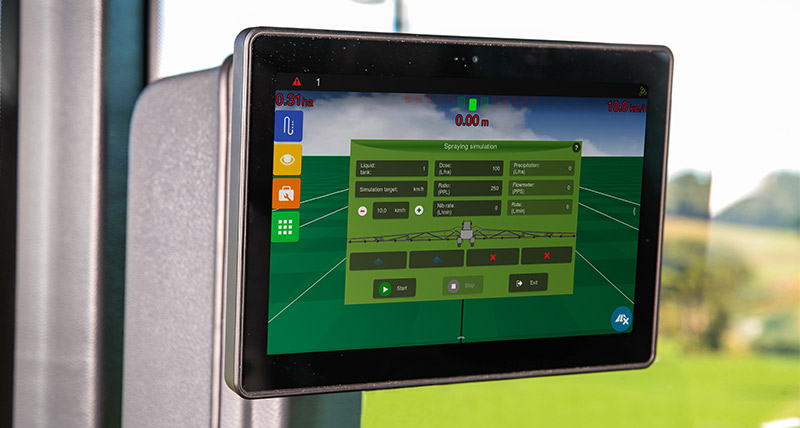

HxGN AgrOn Sprayer Control
