Fotogrametria avançada para chão de
fábrica simplificada
Você gostaria de saber mais?
A C1 é uma câmera digital de 50 megapixels contida em um compartimento com classificação IP51, que a torna ideal para uso em chão de fábrica, oficina ou ambientes externos. Além do compartimento resistente, ele tem um esquema de controle simplificado que reduz a interação do usuário para a seleção de alvos e captura de imagens, com o auxílio de uma grade de seleção de alvo a laser projetada no objeto de medição.
Parte da DPA Series, o DPA Industrial funciona com a plataforma avançada de software DPA Pilot para fornecer um fluxo de trabalho totalmente automático que pode ser gerenciado por qualquer usuário, com treinamento mínimo, desde a sinalização e disparo até cálculos e geração de relatórios.
- Rugged protection
The C1 Camera is contained within a protective IP51-rated casing that makes it ideal for use in the challenging environments within which metrology tools are increasingly being applied and where photogrammetry excels as a measurement solution.
- Simple operation
The unique simplified control schema of the C1 Camera unit is designed to minimise operating errors during measuring tasks. With no need for complex settings adjustment in the field during the measurement process, photogrammetry becomes an easy point-and-shoot exercise requiring minimal training.
See the DPA Industrial in action
Watch videos from across industry of the DPA Industrial in action to see how it is currently being used to overcome challenges like yours.
High-end photogrammetry designed for the shop floor and ideal for eMobility production
Large-scale, high-accuracy, shop-floor photogrammetry
High-end photogrammetry on the shop floor
Recursos e Benefícios
Precisão metrológica
A tecnologia de fotogrametria avançada oferece precisão de medição de até 10 mícrons.
Compartimento resiliente
O compartimento robusto com classificação IP51 oferece forte proteção ambiental para equipamentos ópticos de última geração dentro da unidade da Câmera C1.
Operação sem cabos
Conectividade Wi-Fi de alta velocidade integrada, funcionalidade de controle remoto e bateria de longa duração ideal para mais de 5000 imagens, proporcionando portabilidade e flexibilidade incomparáveis.
Fácil seleção de alvo
O visor dedicado ampliado pela grade de seleção de alvo projetada a laser torna a captura de imagem rápida e direta, mesmo em ângulos difíceis.
Controle simples
O esquema de controle simplificado minimiza os erros operacionais durante as tarefas de medição, tornando a fotogrametria uma tarefa fácil de apontar e disparar que exige o mínimo de treinamento.
Acessórios de medição
A solução DPA Industrial é fornecida com um conjunto completo de alvos, adaptadores e barras de escala, usados para a referência que forma a base dos cálculos de medição.
Ampla compatibilidade
Interface moderna e fácil de usar para os principais pacotes de software de metrologia.
Buy measurement targets online
Identify your spare parts with confidence and benefit from fast UPS delivery.
-
The DPA Series
Handheld photogrammetry
When it comes to shop-floor measurement processes, it’s important to have a simple workflow that’s as immune as possible to user error and the hazards of an industrial environment. That’s why the DPA Series photogrammetry systems have been designed to deliver user-friendly measurement and processing in every situation.
Relying on just a single handheld camera unit backed by a dedicated software platform, DPA Series systems are among the most portable measurement systems in the world, without compromising on metrology-grade accuracy delivered at productivity-enhancing speed.
DPA Series systems are available in three configurations that allow the user to tailor their experience to the needs of their applications. Each system runs on the same advanced DPA Pilot software platform – the foundation of the leading measurement functionality of the DPA Series.
DPA Industrial
- High-end industrial sensor - 50.6 megapixels
- Simplified control schema minimises operating errors during measuring tasks
- Full range of measurement targets, adaptors and scale bars
DPA Professional
- High-end sensor - 30.3 megapixels
- Full control of all camera settings directly in the hands of the end-user
- Extended range of measurement targets, adaptors and scale bars

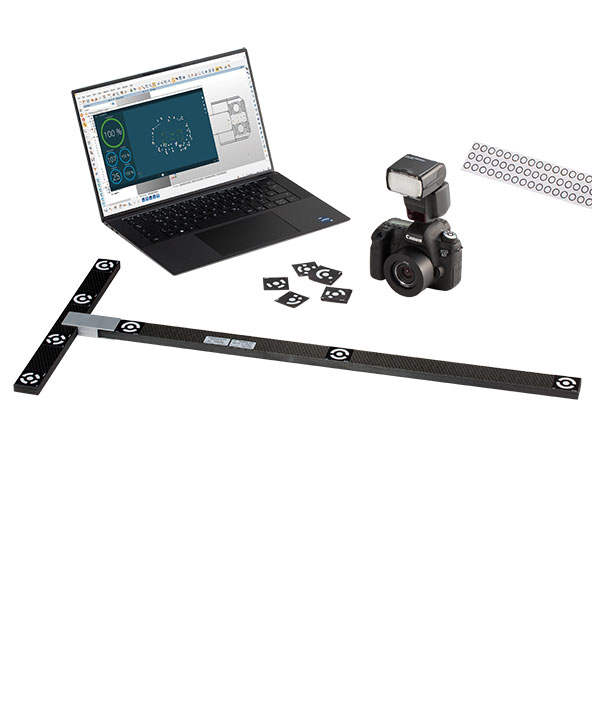

DPA Entry
- Mid-range sensor unit
- Full control of all camera settings directly in the hands of the end-user
- Basic range of measurement targets and scale bars
-
Introduction to photogrammetry
How digital photogrammetric analysis works
The DPA Series systems are portable 3D measuring tools that use a high-resolution digital camera for data collection. They are based on the principles of digital photogrammetric analysis. Measurement with a photogrammetric system involves the following four key steps.
1. Signalising

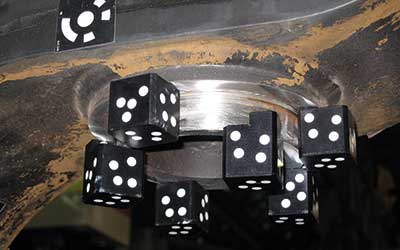

To measure a part, it is first signalised with a selection of targets. Coverage of hidden points or features such as holes and edges is ensured with the use of appropriate target adaptors.
2. Capturing

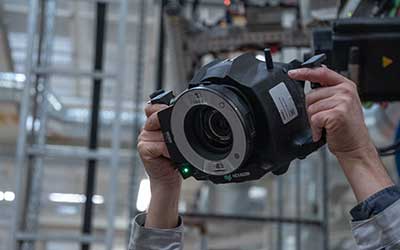

The part is then photographed from several directions, with the targets in view and overlapping between shots.
3. Calculating
The images produced are processed either simultaneously with data collection (online processing) or after data collection (offline processing) through a dedicated photogrammetry software tool like DPA Pilot. The software automatically calculates the 3D coordinates of all targeted points.
The calculation is based on the principle of spatial image triangulation and is fully automated. With software that employs an integrated simultaneous calibration procedure, the highest levels of accuracy can be achieved onsite during the measurement process.
4. Reporting
In addition to 3D coordinates, quality photogrammetry software such as DPA Pilot can provide statistical analysis of the results with specific accuracy information about each coordinate. This allows for instant evaluation of the quality of the measurement.
DPA Pilot is also very deeply integrated into the best inspection software packages and allows complete automations of calculation steps and advanced analyses.
-
